Urinal Screens

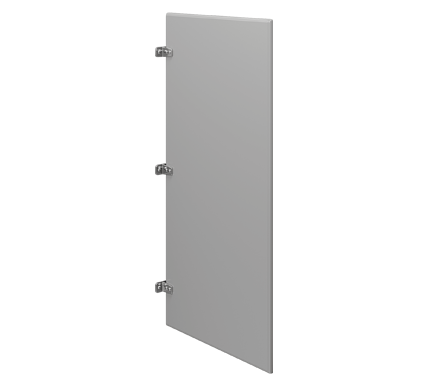

Wall Hung

Wall mounted urinal screens, also known as “wall hung”, are mounted straight to the back wall only and then to the panel screen for support, nothing touches the floor.

Wall hung is the MOST ECONOMICAL and MOST POPULAR urinal screen mounting style.

Wall hung mounted screens are available in 12”, 18” and 24” width, with an available height of 42” or 48”.

Supplied with 3 wall brackets.

Optional full-height brackets are available for extra mounting strength.

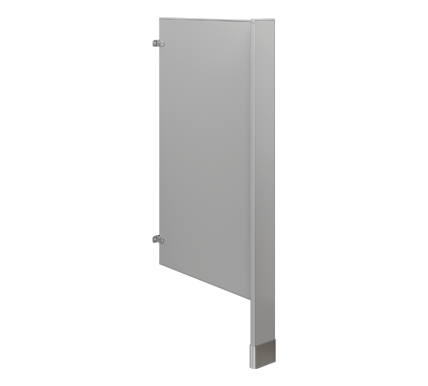

Floor Mounted

Floor mounted urinal screens are mounted straight to the back wall and secured to the floor with a pilaster.

Floor mounted is the second most popular urinal screen mounting style and has a higher price than standard wall hung urinal screens.

Wall hung mounted screens are available in 12”, 30” and 36” depths, with an available height of 58″.

Supplied with 4 brackets (2 for panel to the wall and 2 for panel to pilaster) as well as the pilaster shoe and floor mounting hardware.

Optional full-height brackets are available for extra mounting strength.

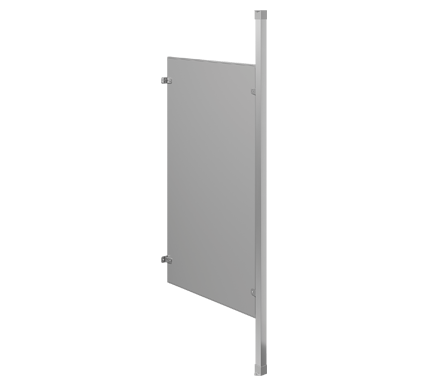

Floor to Ceiling

Floor to Ceiling mounted urinal screen are mounted straight to the back wall and from the floor to ceiling.

Floor to ceiling is the least popular and the most expensive urinal screen mounting style due to extra material and overlength size shipment costs.

Floor to ceiling screens are available in 12”, 18” and 30” depth, with a floor to ceiling 1-3/4″ square aluminum tube.

Supplied with 4 brackets (2 for panel to the wall and 2 for panel to tube) as well as the tube shoe and floor mounting hardware.

Optional full-height brackets are available for extra mounting strength.

Option full-height pilaster is available instead of the aluminum tube.
